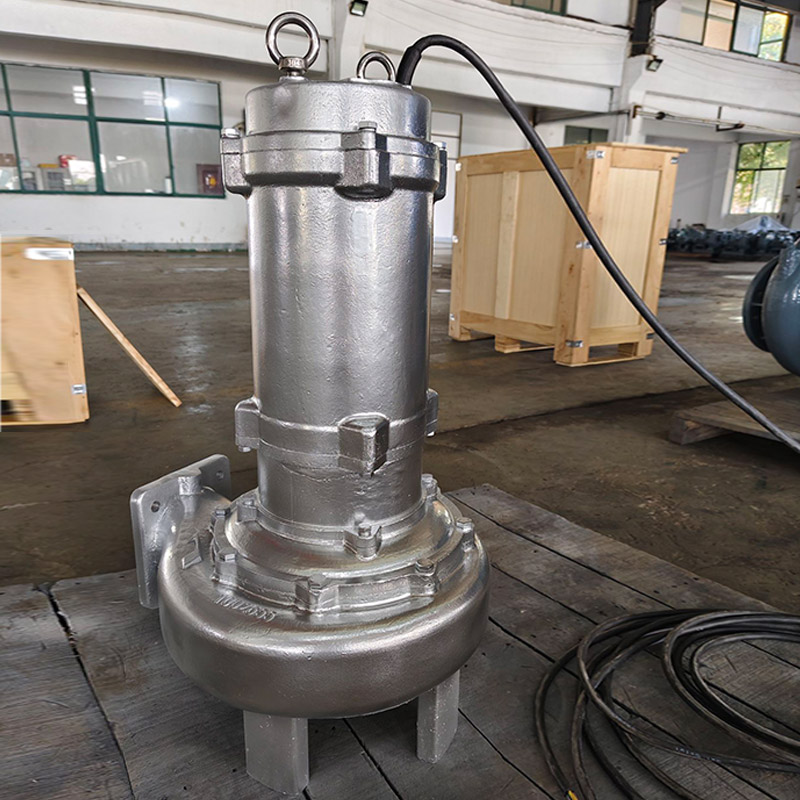

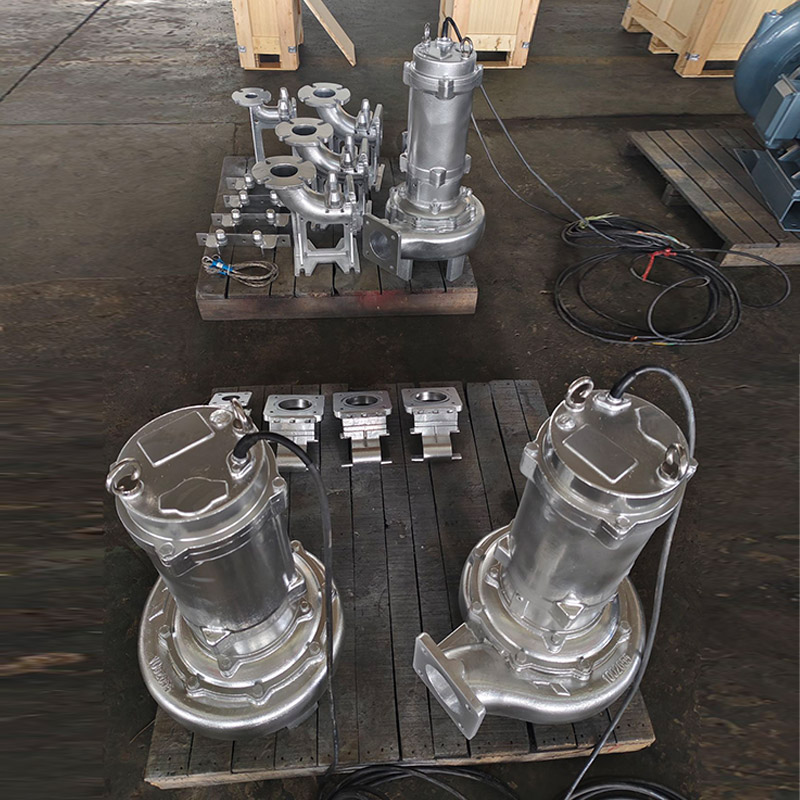

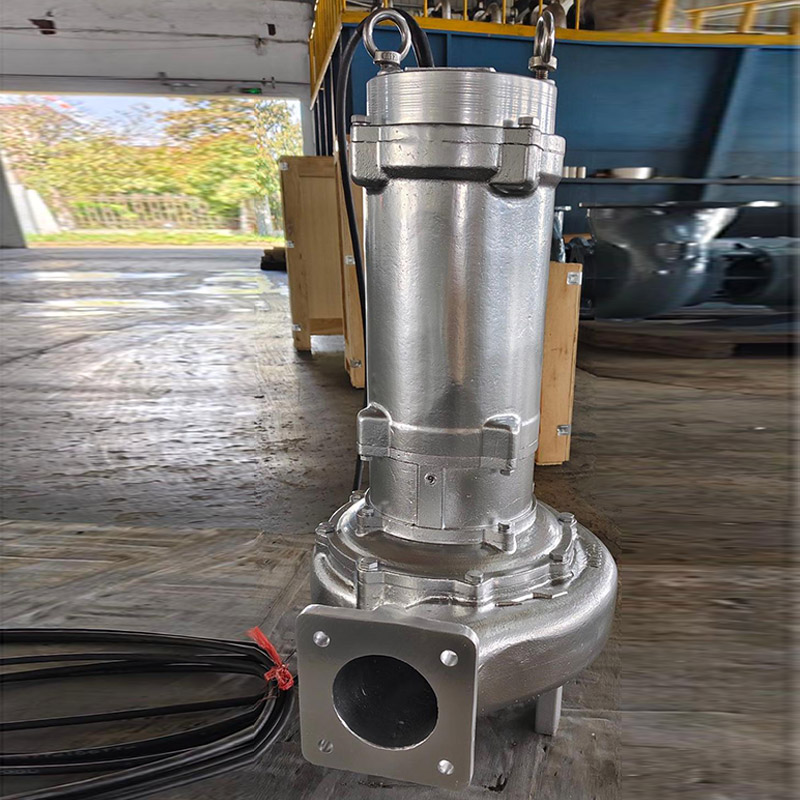

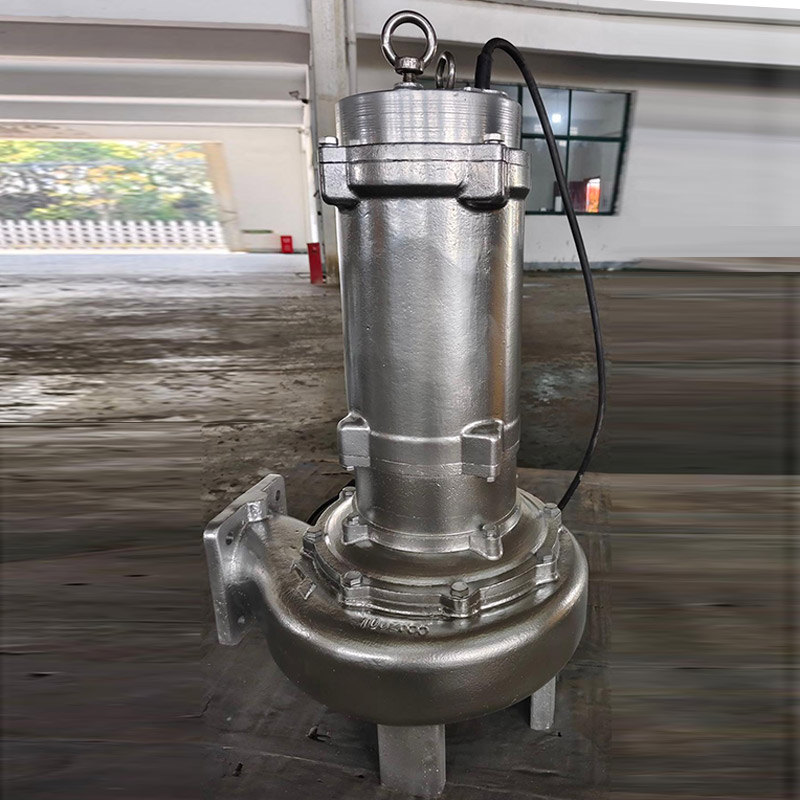

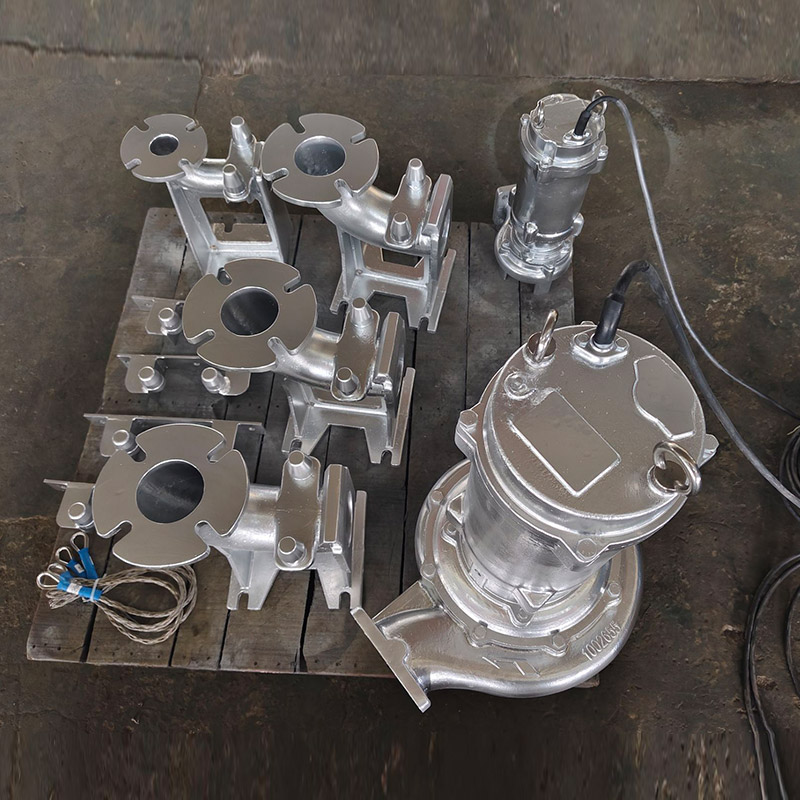

Submersible pump for moody water

Product Description

Application

Wastewater lift station.

Municipal wastewater treatment plant.

Building drainage system

Aquaculture wastewater treatment

Domestic wastewater treatment system

Industrial water supply system

Water purification system

The special cable manufacturing process can completely prevent the water from entering the motor through the small gap between each phase line and line when the cable skin is damaged or the front end of the cable invades the water, resulting in the damage of the motor

Motor:

The submersible motor is professionally designed and manufactured, with protection grade of IP68, stator winding of class F insulation, and the limit working temperature of insulating material is 155 ºC. Overheating protection elements are embedded in the winding to protect the motor through the control cabinet. Class F insulation is standard, and class H insulation motor can be customized according to user requirements

Motor cooling mode:

1.Standard wet motor (standard configuration):

The motor is cooled by the surrounding fluid, and the heat of the motor is directly transmitted to the fluid through the motor housing. The motor must be operated under immersion conditions. Do not operate the motor in dry state!

2. Water cooled jacket motor (optional):

The conveying medium circulates on the surface of the motor stator to take away the heat of the motor, so that the pump can run smoothly at a lower liquid level

Mechanical seal:

Two independent mechanical seals in tandem arrangement.

Hydrodynamic Parts of Sewage Pump

After CFD analysis, each set of hydraulic model forms reliable and efficient hydraulic components to ensure the efficiency and trafficability of sewage transportation.
