Product Description

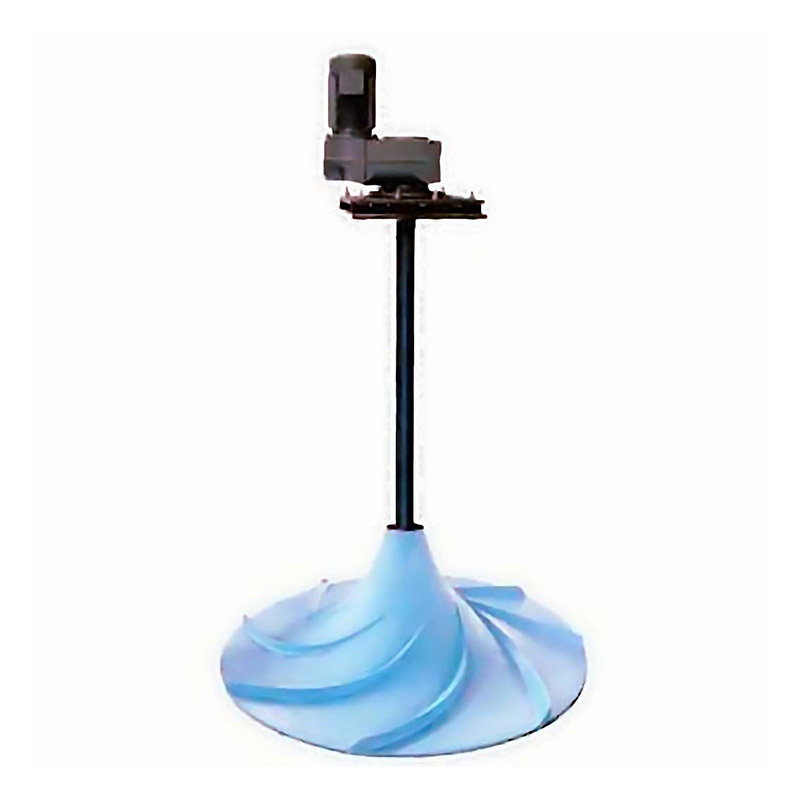

Hyperbolic mixer/Hyperboloid mixer
A low-speed, vertical, semi-submersible mixing device with a conical blade, a bottom support with an additional shaft element is designed to maintain the mixed medium in a given state when the blade is completely submerged under the medium level. In this case, the drive of the device is located above the surface of the liquid on the support structure. The high-performance, energy-efficient cone blade is made of composite material and eliminates the blocking of rotation due to long-fiber impurities in the medium.
Technical Data:
Power:0.75-7.5kW
Impeller diameter:500-2800mm
Service area:1-22m
Rpm of propeller:20-250rpm
TECHNICAL DATA:
Impeller diameter: 500-2800mm
Speed: 20-250 rpm
Power: 0.55-22KW
HM
FFTECH
| Quantity: | |
|---|---|
Product Description
Product Description
TECHNICAL DATA:
Impeller diameter: 500-2800mm
Speed: 20-250 rpm
Power: 0.55-22KW
APPLICATIONS:
Hyperboloid mixers are widely applied in environmental protection, chemistry, energy and light industry where the solid, liquid and gas are interflowing,especially in the sewage treatment process of coagulative precipitation tank, equalization pond, anaerobic pond, nitration pond,and denitrifying pond. If the mixer is dry type installation, it's especial suit for the environment with high temperature, high concentration and corrosive liquid.
MATERIAL:
Main shaft：SUS304/SUS316
Propeller：FRP
