Product Description
Horizontal cutting sewage pump for dry installation
Product application
Municipal wastewater treatment plant
Aquaculture wastewater treatment system
Domestic wastewater treatment system
Industrial water supply system
Product features
The single-stage single suction horizontal cutting sewage pump has a semi open spiral cutting
impeller structure, which cuts up and transports long fibers and other blocks to avoid pump and pipeline
blockage
The cutting structure is firm and durable. The cutting impeller and cutting blade after quenching and
tempering have sufficient compressive strength and can always be sharp.
The unique release groove structure can effectively avoid the blockage of sundries between the gaps, and avoidthe increase of pump power or locked
rotor.
Small size, compact structure and simple installation.
The inlet and outlet diameters are the same, and the operation is stable and reliable.
Adopt mechanical seal, no water leakage and long service life.
Technical data
Power Supply:Three-phase 380V 50Hz
Working mode: S1
Temperature range [°C]:0-80ºC
Environment temperature:0-40ºC
Density: Less than 1.05×103kg/m3
PH value:5-9
NHS150.166C-M2/7.5
FFTECH
| Quantity: | |
|---|---|
Product Description
Product Description

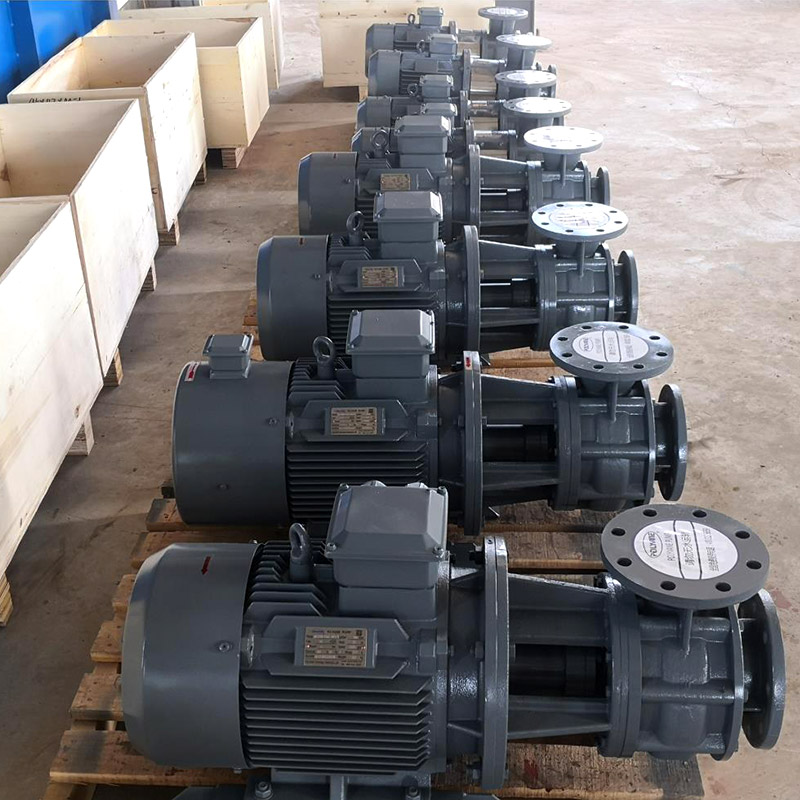

Horizontal cutting sewage pump
Dry installation
Product application
Municipal wastewater treatment plant
Aquaculture wastewater treatment system
Domestic wastewater treatment system
Industrial water supply system
Product features
The single-stage single suction horizontal cutting sewage pump has a semi open spiral cutting
impeller structure, which cuts up and transports long fibers and other blocks to avoid pump and pipeline
blockage
The cutting structure is firm and durable. The cutting impeller and cutting blade after quenching and
tempering have sufficient compressive strength and can always be sharp.
The unique release groove structure can effectively avoid the blockage of sundries between the gaps, and avoidthe increase of pump power or locked
rotor.
Small size, compact structure and simple installation.
The inlet and outlet diameters are the same, and the operation is stable and reliable.
Adopt mechanical seal, no water leakage and long service life.
Technical data
Power Supply:Three-phase 380V 50Hz
Working mode: S1
Temperature range [°C]:0-80ºC
Environment temperature:0-40ºC
Density: Less than 1.05×103kg/m3
PH value:5-9
| Pump model | Speed(r/min) | Capacity(m3 /h) | Head(m) | Motor power(kW) | Dia.(mm) |
| NHS50.109-M2/0.75 | 2900 | 10 | 10 | 0.75 | 50 |
| NHS50.118B-M2/1.1 | 2900 | 10 | 12 | 1.1 | 50 |
| NHS50.125B-M2/1.5 | 2900 | 15 | 15 | 1.5 | 50 |
| NHS65.129A-M2/2.2 | 2900 | 16 | 17 | 2.2 | 65 |
| NHS65.129B-M2/2.2 | 2900 | 25 | 15 | 2.2 | 65 |
| NHS150.223-M4/7.54/15 | 1450 | 150 | 9 | 7.5 | 150 |
| HCS200.267-M4/15 | 1450 | 200 | 15 | 15 | 150 |
