Product Description

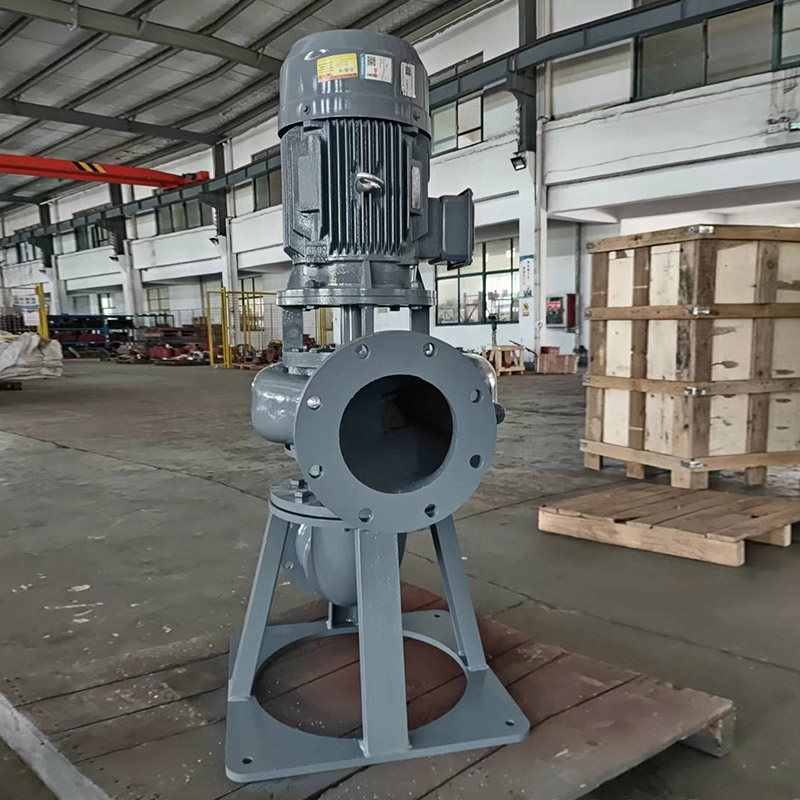

Vertical coupling sewage pump
Technical data
Power Supply:Three-phase 380V 50HZ
Working mode: S1
Temperature range [°C]:0-80ºC
Environment temperature:0-40ºC
Density: Less than 1.05×
PH value:5-9
Installation mode:Horizontal installation

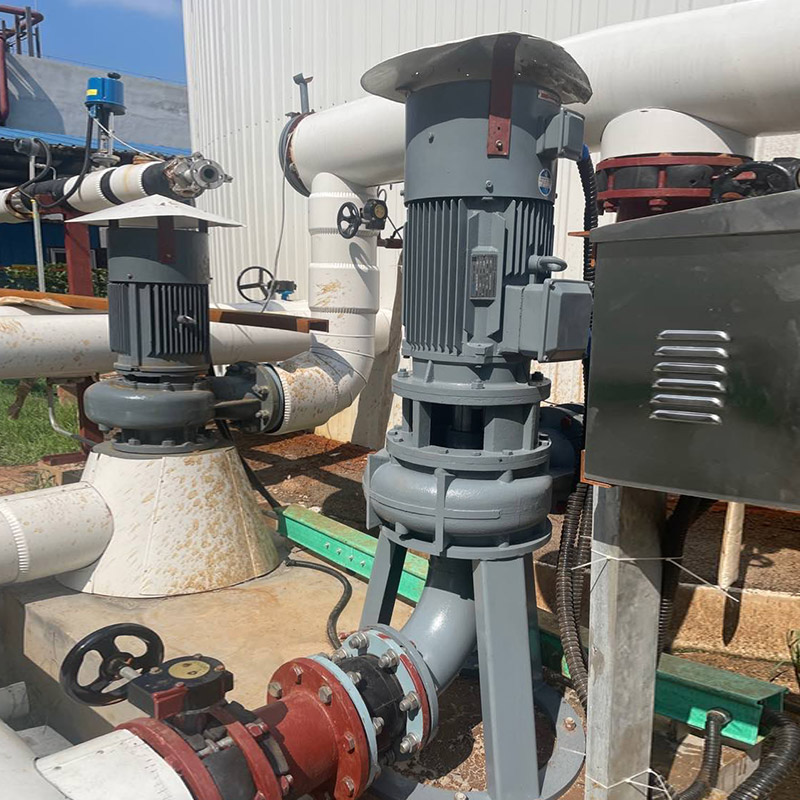

APPLICATIONS:
Municipal wastewater treatment plant;
Aquaculture wastewater treatment system;
Domestic wastewater treatment system;
Industrial water supply system;
Water purication system
MATERIAL:
FC200, SUS304, SUS316, SUS316L
VS150.220D-M4/7.5
POLYVANE
| Quantity: | |
|---|---|
Product Description
Product Description

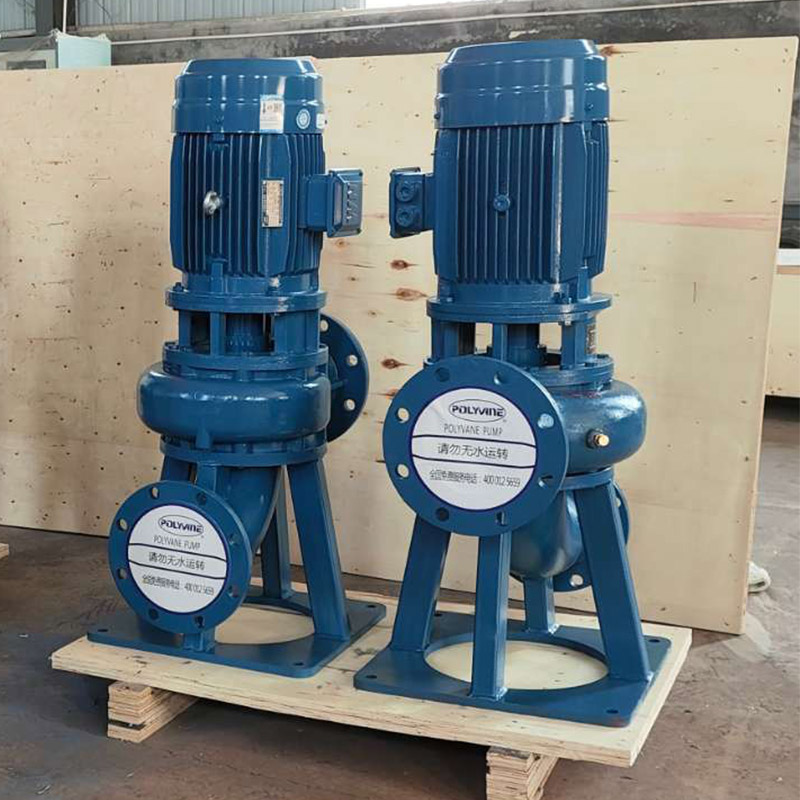

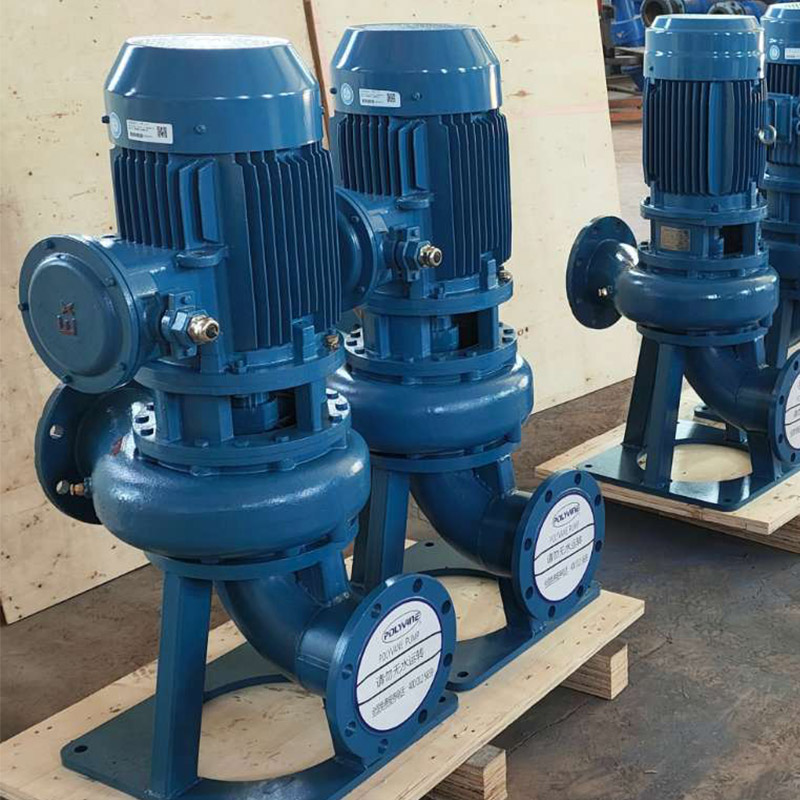

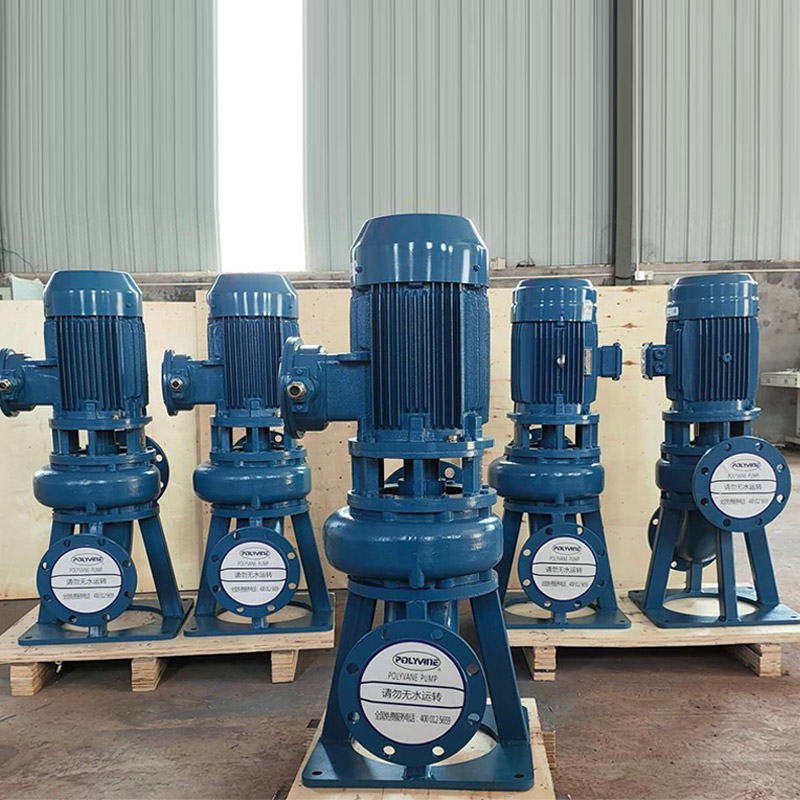

Electric Non-Clog Vertical Centrifugal Sewage Pump
TECHNICAL DATA:
Power:0.75-22kW
Outlet:DN50-DN250mm
Head:6-30m
Capacity:10-700m3 /h
Product features
The motor and pump body are connected through flange coupling structure, with high concentricity and small floor area.
The unique design of double channel impeller / blade impeller, wide pump body, easy passage of solids, is most suitable for conveying sewage and dirt. Mechanical seal is adopted, no leakage and long service life.
Technical data
Power Supply：Three-phase 380V 50HZ
Working mode: S1
Temperature range [°C]：0-80℃
Environment temperature：0-40℃
Density: Less than 1.05×103kg/m3
PH value：5-9
Installation mode：Horizontal installation
Vertical coupling sewage pump
| Pump model | Speed(r/min) | Capacity(m3/h) | Head(m) | Motor power(kw) | Efficiency(%) | Dia.(mm) | Weight(kg) |
| VS50.120D-M2/1.5 | 2900 | 12 | 13 | 1.5 | 35 | 50 | 68 |
| VS65.205D-M4/1.5 | 1450 | 25 | 10 | 1.5 | 60 | 65 | 88 |
| VS80.223D-M4/2.2 | 1450 | 40 | 10 | 2.2 | 60 | 80 | 106 |
| VS100.230D-M4/4 | 1450 | 75 | 10 | 4 | 70 | 100 | 138 |
| VS150.190D-M4/4 | 1450 | 130 | 6 | 4 | 72 | 150 | 208 |
| VS200.230D-M4/15 | 1450 | 300 | 10 | 15 | 72 | 200 | 325 |
| VS250.248D-M4/15 | 1450 | 500 | 6 | 15 | 71 | 250 | 412 |
| VS250.298D-M4/22 | 1450 | 700 | 6 | 22 | 73 | 250 | |
| SO ON |
