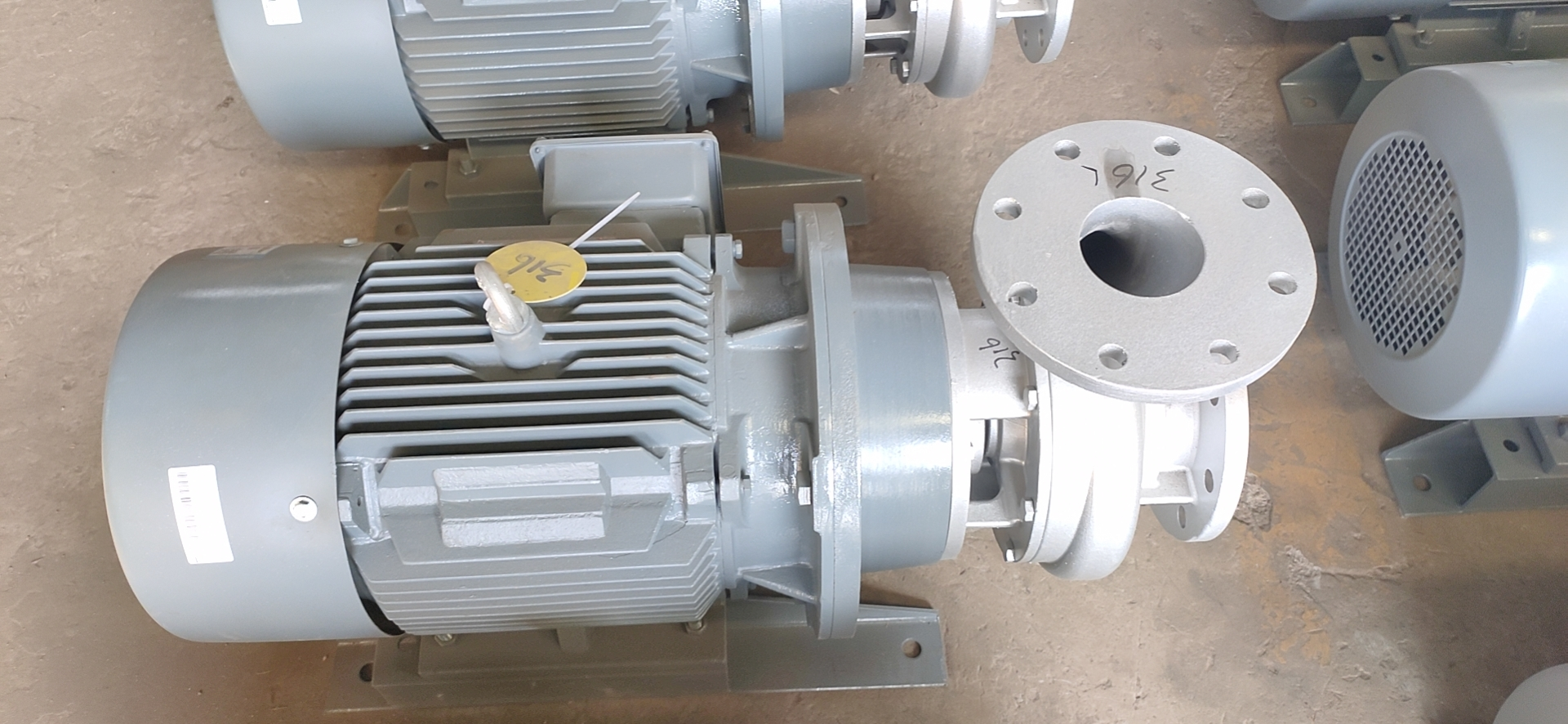

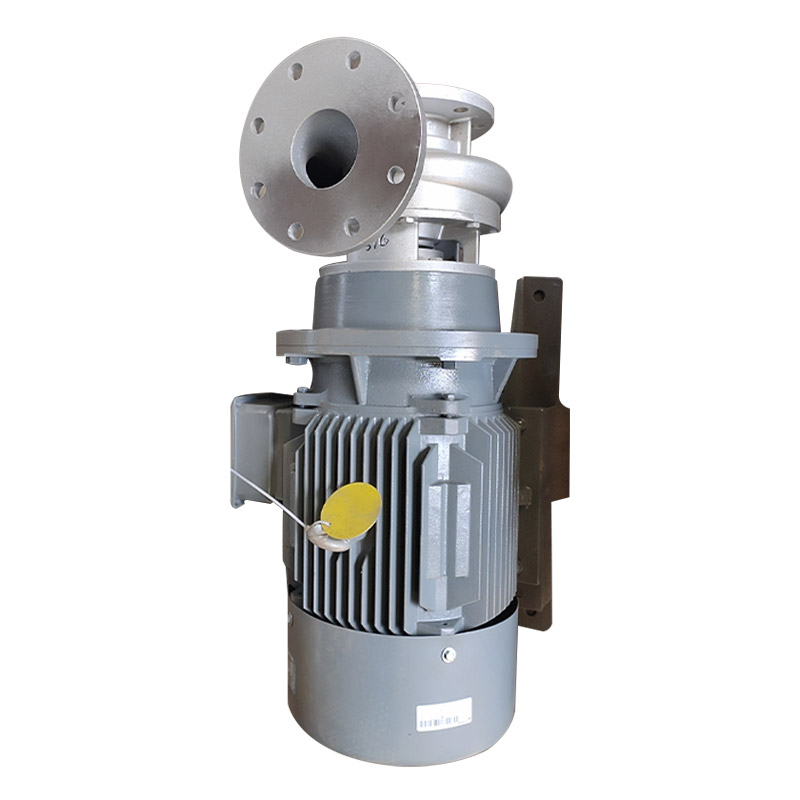

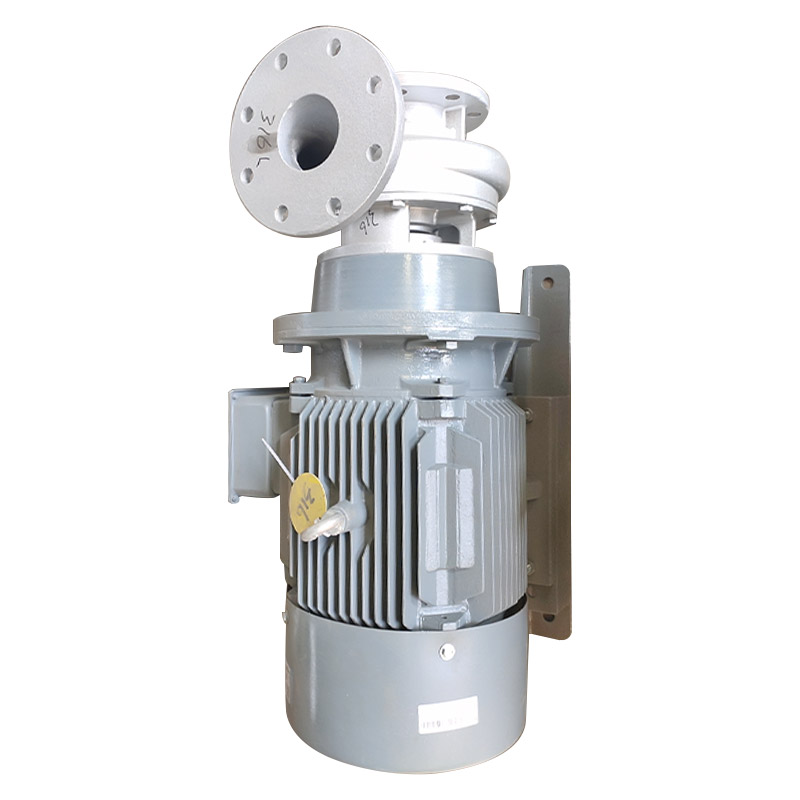

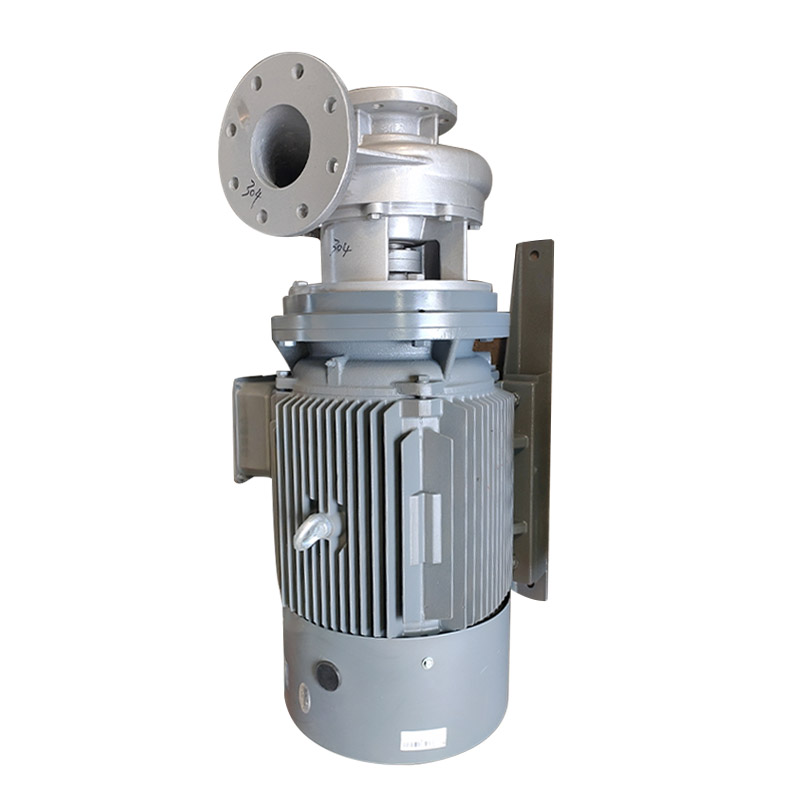

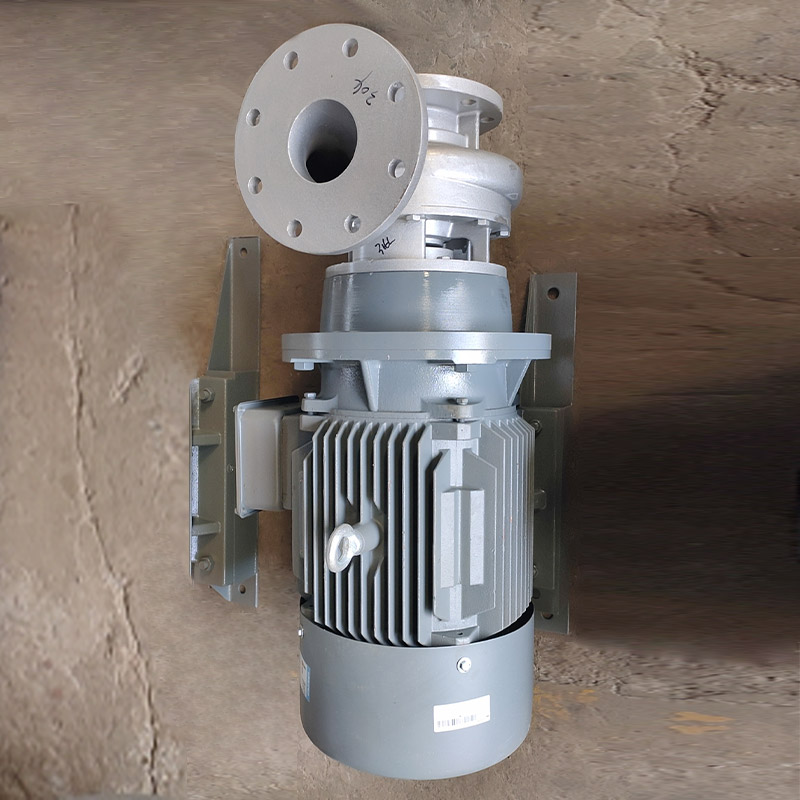

Self priming centrifugal pump designed for liquids with relatively low viscosity
Design
Self priming centrifugal pump for dry installation
TECHNICAL DATA:
Power supply: three-phase 380V 50HZ
Working mode: S1
Temperature range: 0-80 degrees
Environment temperature: 0- 40 degrees
Density: less than 1.05X 103 kg/m3
PH value: 5-9
Power:0.75-18.5 kW
Outlet:DN 0-DN 150 mm
Head:8-31 m
Capacity:10-180 m3 /h
SC100.170-M2/11C
FFTECH
| Quantity: | |
|---|---|
Product Description
Product Description
Product features
Small size, light weight, small space, easy installation.
The pump body has special structure and high self-priming capacity.
After the use of pull-out structure, easy maintenance.
Semi - open impeller structure, sewage impurities transport capacity.
Mechanical seal is adopted, no leakage and long service life.
Easy to use: just install the pump beside the pool and put the suction pipe deep below the liquid level to work (the pump needs to be filled with water before the first operation).
| Pump model | Speed(r/min) | Capacity(m3/h) | Head(m) | Motor power(kw) | Dia.(mm) | Efficiency(%) | Dia(mm)Weight |
| SC50.135-M2/1.5D/C | 2900 | 10 | 15 | 1.5 | 50 | 50 | 75 |
| SC65.150-M2/2.2D/C | 2900 | 25 | 13 | 2.2 | 50 | 65 | 90 |
| SC80.150-M2/5.5C | 2900 | 50 | 19 | 5.5 | 53 | 80 | 130 |
| SC100.170-M2/11C | 2900 | 70 | 20 | 11 | 57 | 100 | 267 |
| SC100.195-M2/18.5C | 2900 | 100 | 30 | 18.5 | 60 | 100 | 316 |
| SC50.189-M4/0.75D/C | 1450 | 12 | 8 | 0.75 | 46 | 50 | 77 |
| SC65.189-M4/1.5D/C | 1450 | 25 | 9 | 1.5 | 52 | 65 | 82 |
| SC80.224-M4/2.2D/C | 1450 | 42 | 9 | 2.2 | 50 | 80 | 120 |
| SC100.249-M4/5.5D/C | 1450 | 72 | 13 | 5.5 | 50 | 100 | 196 |
| SC150.279-M4/11D/C | 1450 | 144 | 15 | 11 | 65 | 150 | 298 |
| SC150.279-M4/18.5D/C | 1450 | 180 | 20 | 18.5 | 68 | 150 | 347 |
| SO ON |
APPLICATIONS:
Industrial water supply and drainage;
Building site water supply and drainage;
Irrigation and drainage for agricultural;
Drainage for sewer and purifying tanks;
Drainage for waste water treatment;
MBR membrane suction is used
MATERIAL:
FC200, SUS304, SUS316, SUS316L
